JH-FC026

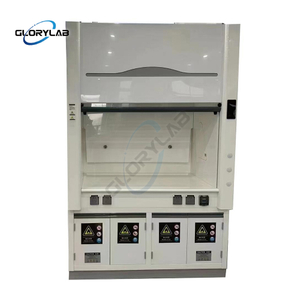

Model:JH-FC026
Our PP fume hoods have been tested and approved by SGS, ensuring the safety of our products.
Advantage:
1.The cabinet is made of 8mm high-quality white polypropylene (PP) sheet, which has excellent chemical resistance.
2.The door is made of 15mm high-quality white PP sheet.
3.The handle and hinge are made of high-quality, one-time-formed PP material.
4.The sash is a 5mm thick, tough-end glass panel that slides up and down using a belt and a special counter-balance safety device.
5.All edges of the sash are aerodynamic.
6.The worktop is made of a solid 15mm PP worktop and includes a storage cabinet.
7.The face velocity must be at least 0.5 m3/sec when the sash is opened to a safe height.
8.The system is designed and manufactured according to ASHRAE110-2016 standards.

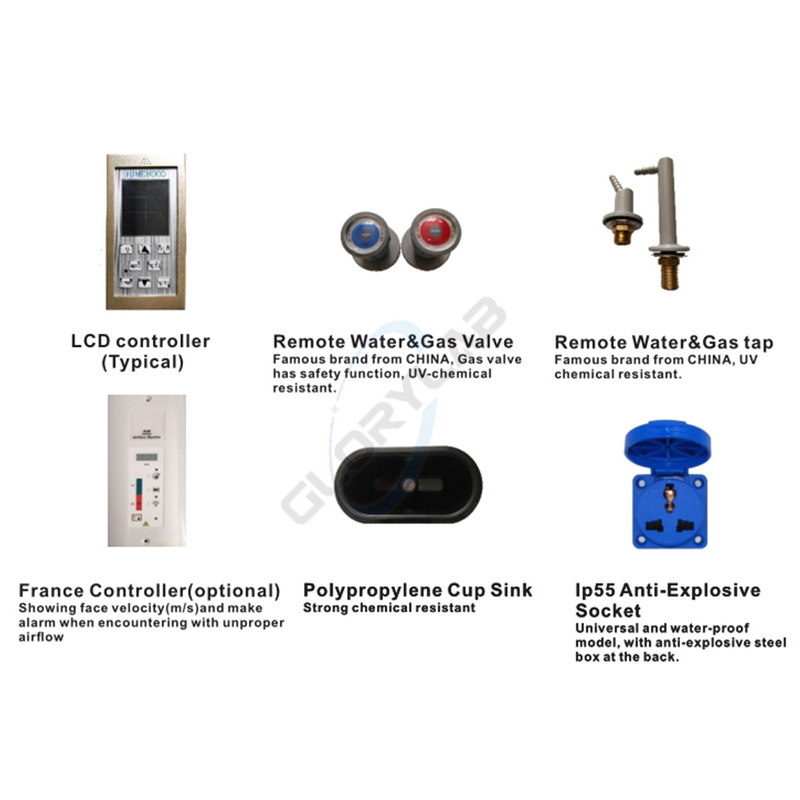

9.The system includes:
1 flourescent light built into 1 separate space.
1 No. remotecold water valve and outlet.
1 No. remote gas valve and outlet with safety function.
4 No. 10 Amp, 220V elect universal or UK/EU socket.
1 No LCD monitor which controls power, light, etc, or specified intelligent controller showing face velocity
and alarming having unproper airflow in working chamber.
With a small centrifugation fan and flexible pipe.
Drawing:
Model:JH-FC026
Our PP fume hoods have been tested and approved by SGS, ensuring the safety of our products.
Advantage:
1.The cabinet is made of 8mm high-quality white polypropylene (PP) sheet, which has excellent chemical resistance.
2.The door is made of 15mm high-quality white PP sheet.
3.The handle and hinge are made of high-quality, one-time-formed PP material.
4.The sash is a 5mm thick, tough-end glass panel that slides up and down using a belt and a special counter-balance safety device.
5.All edges of the sash are aerodynamic.
6.The worktop is made of a solid 15mm PP worktop and includes a storage cabinet.
7.The face velocity must be at least 0.5 m3/sec when the sash is opened to a safe height.
8.The system is designed and manufactured according to ASHRAE110-2016 standards.
9.The system includes:
1 flourescent light built into 1 separate space.
1 No. remotecold water valve and outlet.
1 No. remote gas valve and outlet with safety function.
4 No. 10 Amp, 220V elect universal or UK/EU socket.
1 No LCD monitor which controls power, light, etc, or specified intelligent controller showing face velocity
and alarming having unproper airflow in working chamber.
With a small centrifugation fan and flexible pipe.
Drawing:
