JH-FE008

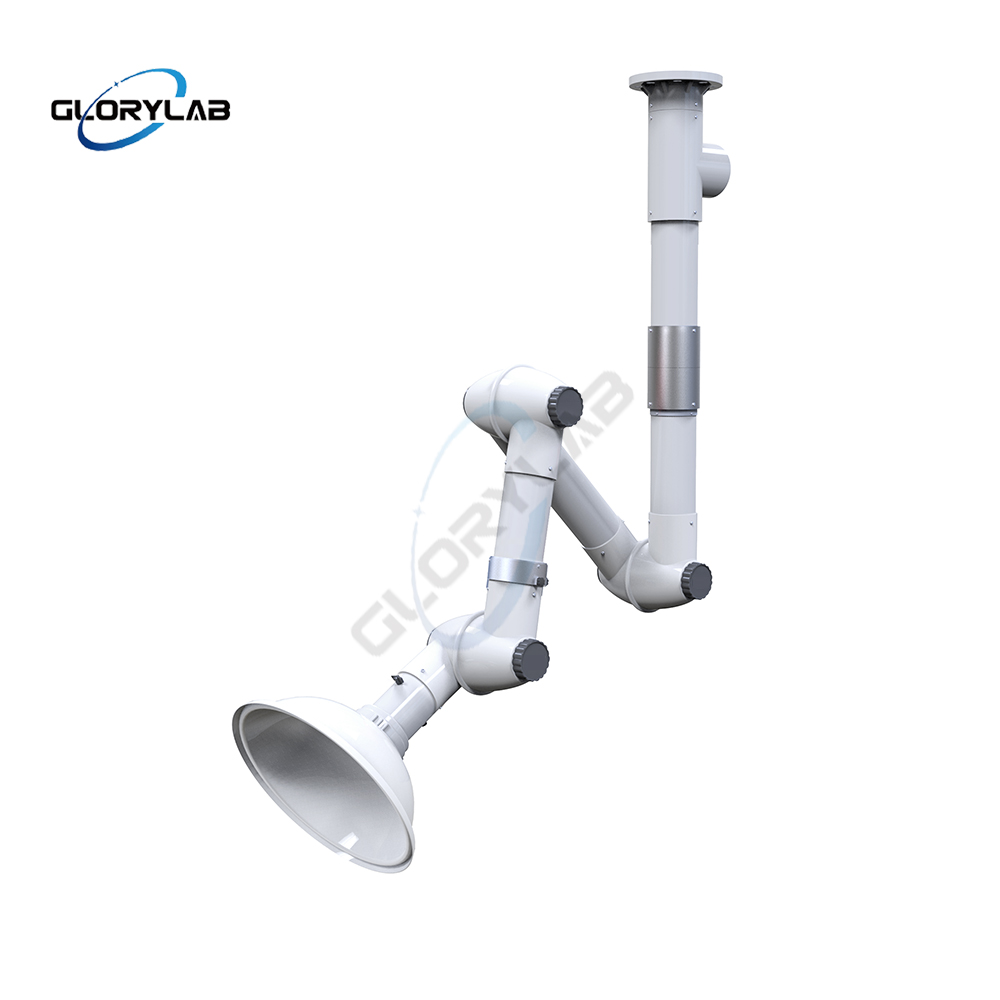

Model：JH-FE008
Product description:
Joint:High grade PP to be 360°swiveled,easy to dismantle,assemble &clean
Sealing ring:Low-friction treated rubberCenter bolt:304stainless steel
Adjustable joint knob: Totally brass with a s/s bearing inside locked with center bolt
Damper: To manually adjust air flow with a knob
Dome/cup hood: PC,Completely transparent
Tube:75mm PVC/PP
Swing device: with 360°swing device,take fixed rack as centre, max enabing movement radius to 1600mm
Installation Bracket: Injection of plastics from a complete Mold,mounting panel strongly connected to the joint

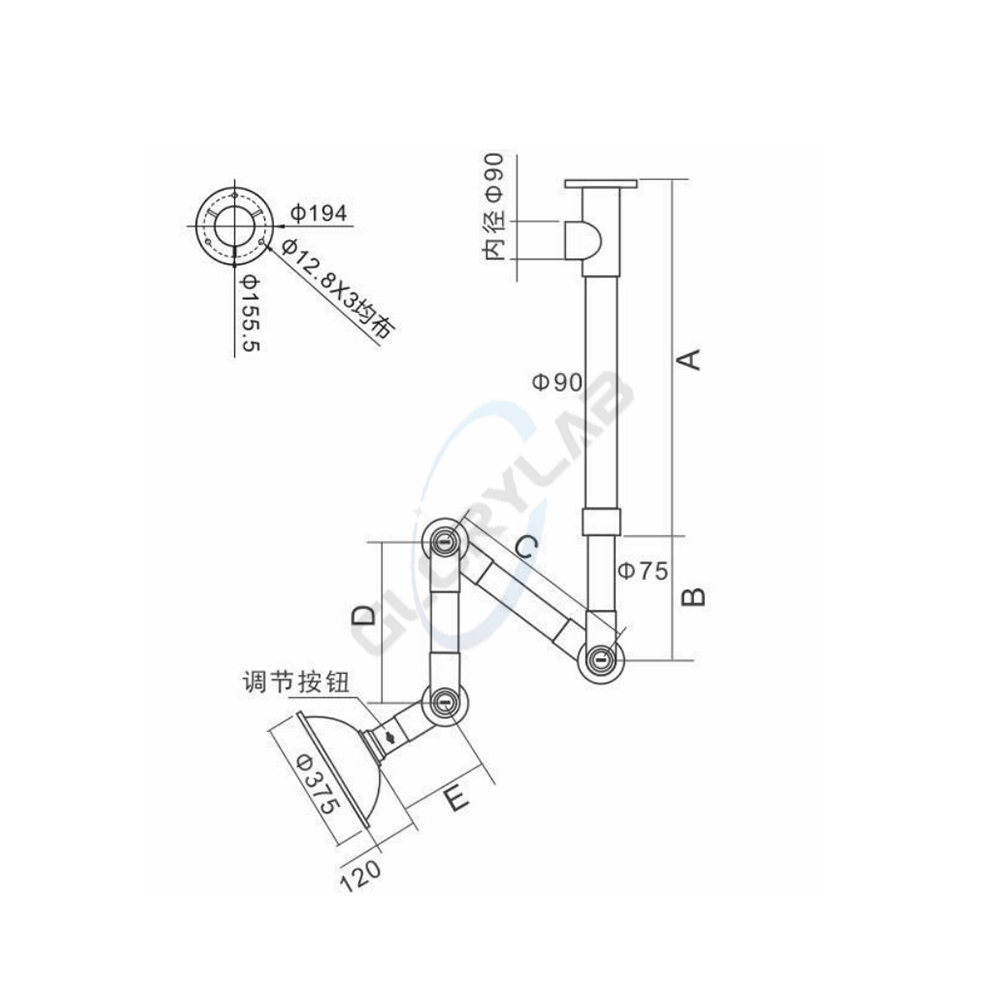

Drawing:
Model：JH-FE008
Product description:
Joint:High grade PP to be 360°swiveled,easy to dismantle,assemble &clean
Sealing ring:Low-friction treated rubberCenter bolt:304stainless steel
Adjustable joint knob: Totally brass with a s/s bearing inside locked with center bolt
Damper: To manually adjust air flow with a knob
Dome/cup hood: PC,Completely transparent
Tube:75mm PVC/PP
Swing device: with 360°swing device,take fixed rack as centre, max enabing movement radius to 1600mm
Installation Bracket: Injection of plastics from a complete Mold,mounting panel strongly connected to the joint
Drawing:
