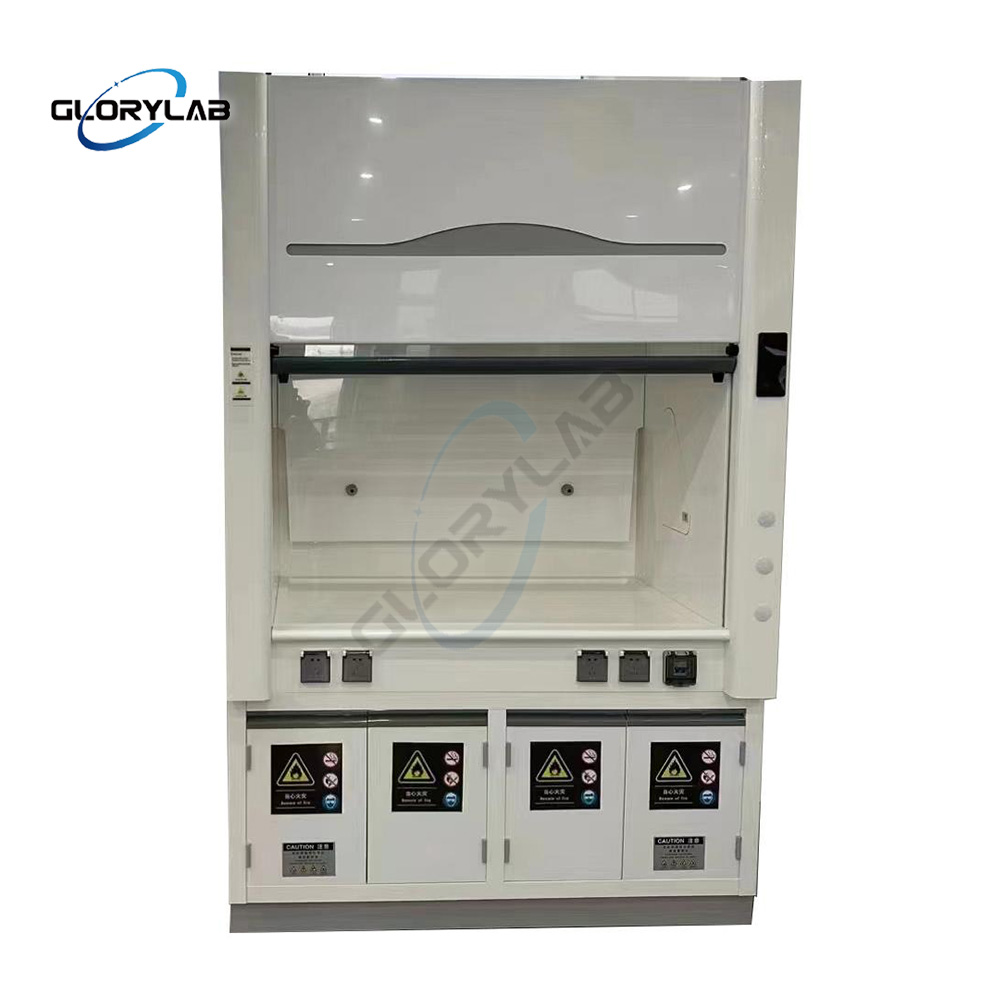

JH-FC026
Glorylab
Model: JH-FC026
Glorylab benchtop fume hood is a powerful ventilation device designed specifically for laboratory safety. It effectively removes harmful smoke, steam, and dust, ensuring a safe workspace. This desktop device is very suitable for small-scale experiments, providing local protection without taking up too much space. Its adjustable airflow system improves efficiency, making it highly suitable for chemical treatment and biological research.
Normally it doesn't have nether storage cabinet and it can be placed on lab benches directly.
| Type | FC1200 | FC1500 | FC1800 | |
| Exterior size(LxWxH) | 1200*850*2350mm | 1500*850*2350mm | 1800*850*2350mm | |
| Interior size(LxWxH) | 920*640*1200mm | 1220*640*1200mm | 1520*640*1200mm | |
| Working height | 850mm | |||
| Material | Cold-rolled or galvanized steel coated with Akzonobel anti-corrosive epoxy resin powder. | |||
Lining: 5mm phenolic resin panel/ceramic fiber panel, chemical resistant and easy to be dismantled and cleaned without tool. | ||||
Worktop: 19mm thick solid epoxy resin with 25mm thick water proof edge/ceramic/ lab grade phenolic resin etc. | ||||
Sash: two pcs of 5mm toughened safety glass, with high quality long aluminum handle. Height can be moved up and down freely and it can be stopped at any position. | ||||
| Sash max opening | 795mm | |||
| Power supply | 220/380V, 50/60Hz, single or three phase | |||
| Noise | <65dB | |||
| Air face velocity | Average 0.3~0.5m/s | |||
| Illumination | >400 LUX, LED lighting, insulated from air by tempered glass | |||
| Diameter of exhaust outlet | 250mm | |||
| Standard accessories | LCD controller,LED lamp, brand remote water and gas fittings with safety function, 4 universal sockets, leakage protector, emergency botton, PP cup sink etc. | |||
| Optional accessories | Centrifugal fan, 3 meters of PVC flexible pipe, France digital controller with sensor, VAV system, motorized sash, grid frame etc. | |||
| Packing size | Upper cabinet | 1250*900*1650mm | 1550*900*1650mm | 1850*900*1650mm |
Modern benchtop fume hoods have advanced features such as energy-saving motors, noise reduction, and easy to clean surfaces. Many models include LED lighting to improve visibility and ergonomic window frame design to achieve smooth operation. The compact desktop design ensures flexibility, seamlessly integrating into crowded laboratories while maintaining excellent airflow control.
Constructed from corrosion-resistant materials like polypropylene or epoxy-coated steel, benchtop fume cupboards withstand harsh chemicals. They are widely used in educational labs, pharmaceutical research, and industrial quality control. Their space-saving design makes them ideal for facilities with limited room but high safety demands.
In conclusion, benchtop fume hoods are a must-have for labs prioritizing safety and efficiency. Its smart design, economic budget and versatile applications make it an essential investment.
