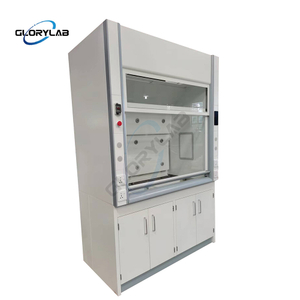

Walk in Laboratory Fume Cupboard For Large Equipment

Model: JH-FC002
Material: Cold Rolled Steel Plate
Type: Natural Ventilation
Function: Exhaust of Waste Air
Feature: Chemical Resistant, Big Size
Hood Type: Walk-in
Color: White or Customized.
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • JH-FC002

  • Glorylab

  • 8414609090

Model: JH-FC006



1. Walk-in fume hood is suitable for placing big size laboratory facilities into fume hood chamber.

2. Light belt transmission maintain the sash balance and  stability  with lifting force less  than  0.5KG.

Bring comfortable experience to each lab operator.

3. 1.0mm/1.2mm cold-rolled  steel  coated  with  Akzonobel  epoxy  powder, excellent  anti-corrosion performance.

4. Brand accessories of steel fume cupboard are part of integrated product quality.

5. Both CAV and VAV system available as customers' needs.VAV is designed to reduce at least 30% engery consumption.

Material Description of steel fume hood:

Size LxWxH: 1200/1500/1800x850x2350mm, customized size is workable.

Exterior structure 1.0/1.2mm cold-rolled/galvanized steel sheet coated with epoxy resin powder after acid pickling, phosphating,oil and rust removing.

Interior structure 5mm compact/ceramic fiber panel which is chemical resistant and easy to be dismantled.

Sash 5mm toughened safety/anti-explosive glass,height can be adjustable. Sash can be moved horizontally if necessary. Long aluminum alloy handle is applied.

Storage cabinet: without.

Standard accessories Fluorescent lamp insulated from gas, LCD controller, TOFF safe water&gas remote fitting equipped with pipeline and accessories.cup sink, 4 universal/British/European/water proof socket. electrical leakage protection device.

Optional accessories 300W small centrifugal fan/3 meters PVC flexible pipe, France digital controller with sensor.

Power supply 220/380V,50Hz

Face velocity 0.3~0.7m/s

Noise <60dB

Diameter of exhaust outlet 250mm

Fluorescent lamp 30W
