JH-FC019
Glorylab
8414609090
Model: JH-FC019
Advantages of Metal Fume Hood:
Designed in accordance with the US ASHRAE 110 standard, our laboratory steel fume hoods ensure maximum operator safety and meet the highest industry performance requirements.
Each fume hood is equipped with a light-belt transmission system that stabilizes the sash movement, providing smooth, balanced operation for laboratory personnel.
Special design of baffle, airfoil and corner posts help form smooth airflow and minimize turbulence, ensure integrated safety and efficiency.
Manufactured from 1.0mm/1.2mm cold-rolled steel and finished with AkzoNobel epoxy powder coating, our steel fume hoods deliver outstanding corrosion resistance and long-term durability.
All metal fume hoods are fitted with premium brand components to guarantee consistent quality and reliable performance.
We offer both Constant Air Volume (CAV) and Variable Air Volume (VAV) airflow control systems. VAV systems are engineered to lower energy consumption by at least 30%, offering an efficient solution for modern laboratories.
A wide range of cabinet configurations is available, including floor-standing, mobile, acid storage, pharmaceutical, and fireproof cabinets, allowing you to build a layout that suits your operational needs.
Our experienced engineering team provides customized fume hood solutions tailored to each client’s requirements, local regulations, and on-site working conditions.
Specifications:
• Size: 1200/1500/1800 × 850 × 2350 mm (custom sizes available)
• Power supply: 220/380V, 50Hz
• Face velocity: 0.3–0.7 m/s
• Noise level: <60 dB
• Exhaust outlet diameter: 250 mm
• Fluorescent lamp: 30W
Control panel:
1. LCD control panel which is capable of controlling ON/OFF of lab fume hood, lamp and fan. Shutdown time can be set in advance.
2. French Digital controller showing face velocity,making alarm when encountering with unproper airflow etc.
3. Top quality VAV system to protect safety of operators by keeping constant face velocity when the sash is lifted up or down.
Remark:
1. PP pallets/drawers also can be added in base cabinet connecting with main exhaust ventilation system.
2. Duct and a variety of fans are available if required by customers.
3. We offer dismantled fume hood with economical strong packing helping customer save transport&packing cost.
4. Floor standing/movable/acid storage/Fire proof/drug cabinet etc are available for your option.
5. Pls tell us if you have any special requirements.
Installation:
We can offer both assembled and dismantled fume hoods based on customers' needs. If cusotmers are capable of assembling lab fume hood, we recomend dismantled model because it would help customers to save much cost including sea freight and other cost. We can offer installation drawing/guidance/vedio/online help as assistance.
Packing:
Carton for FCL(full container) goods, wooden case or thick honeycomb carton for LCL goods.
We always recomend the best packing type for customers according to order volume&goods size&installation status in the principle of cost saving and safety consideration
Transport:
By train/air/sea, LCL or full container as per goods volume&delivery schedule of customers.
Container type: 20GP, 40GP, 40HQ.
Sea port: Shanghai or any specified port in CHINA.

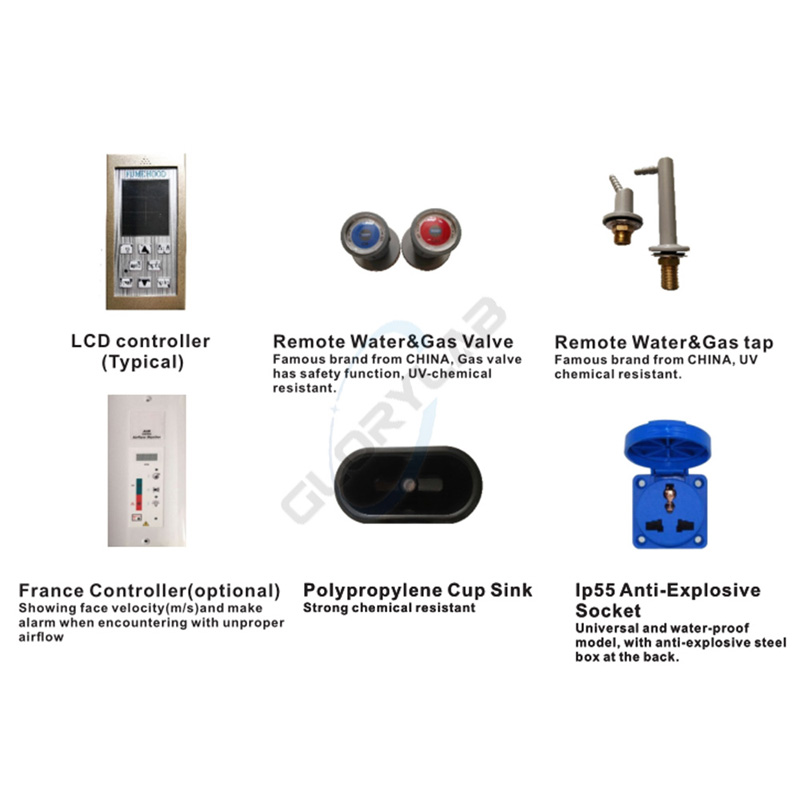

Lab Fittings of Lab Fume Hood:

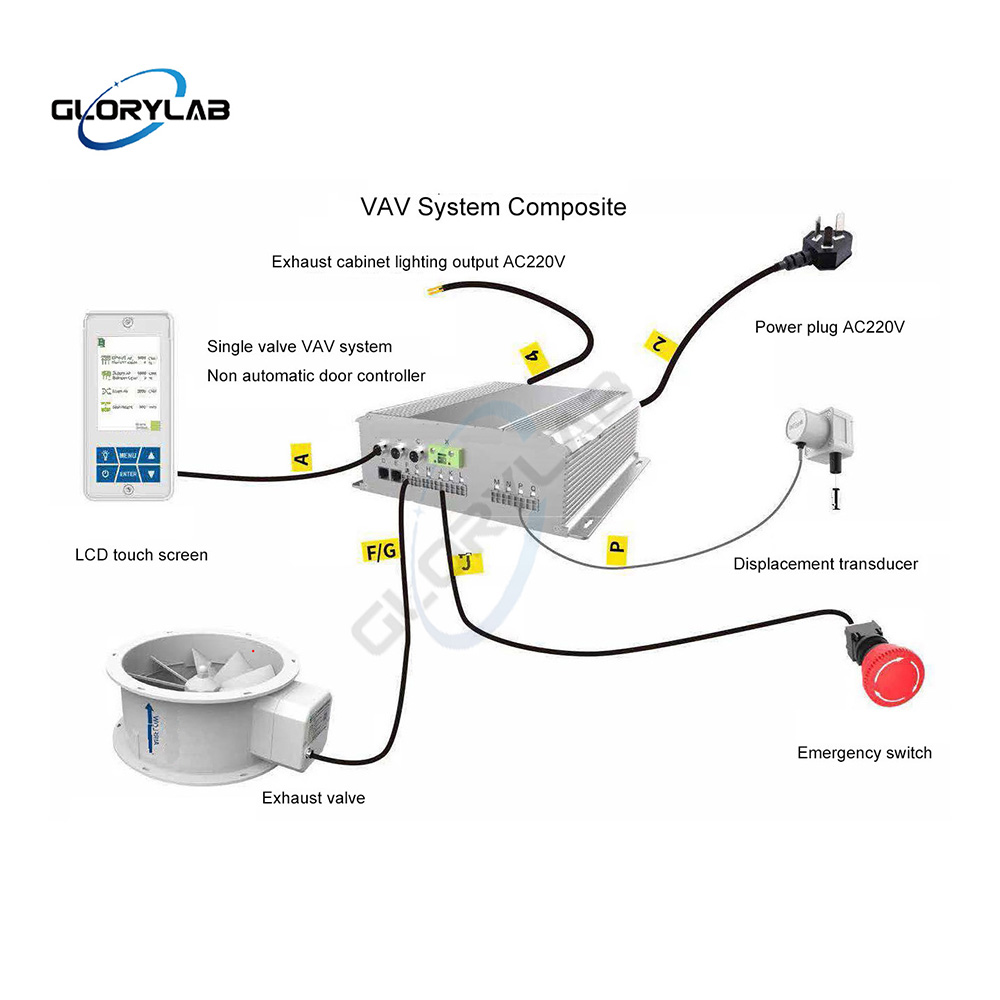

VAV System For Option:
