High End Double Outlets Laboratory Tap for School

Product Overview Of Double Outlets Laboratory Tap

This double outlet lab water tap is a professional water fixture specially designed for installation on laboratory sinks. It is widely applied for supplying water to lab analytical instruments, cleaning test tubes, beakers and other lab glassware, as well as supporting sample pretreatment and experimental pipeline connection.

This faucet adopts a dual independent valve design with two separate tapered barb outlets, allowing simultaneous water supply for two groups of experimental equipment. It is available in white and gray epoxy coating to match various lab cabinet styles, with a standard Φ22mm bench mounting hole for easy installation.

Material & Technical Specifications Of Double Outlets Laboratory Faucet

Brass Pipeline Construction

1. Valve Body: Hot-forged H59-1 brass bar, high structural rigidity and pressure resistance

2. Vertical Stand Pipe: Φ26×1.2mm thick H63 brass tube

3. Horizontal Curved Arm Pipe: Φ22×1.2mm H63 brass tube

4. Outlet Nozzle: Hot-forged H59-1 brass bar with tapered barb tip

Protective Epoxy Resin Coating

All metal surfaces are treated with epoxy resin coating, delivering triple performance: corrosion resistance against lab chemicals, heat resistance up to 95°C, and anti-UV radiation to prevent fading and peeling.

Control System

1. Ceramic Cartridge Valve: 90° quarter-turn operation, tested for 500,000 open/close cycles with zero dripping leakage

2. Control Knobs: Ergonomic high-density PP plastic, comfortable to grip even with chemical protective gloves

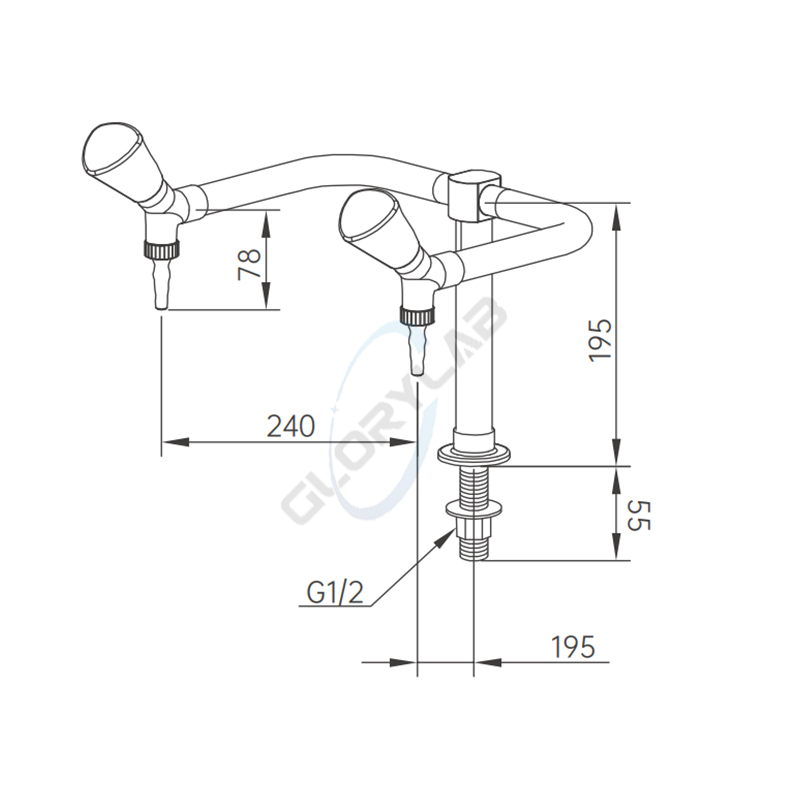

Technical Performance Parameters

1. Working Temperature Range: 1°C ~ 95°C

2. Recommended Operating Water Pressure: 1 bar – 8 bar

3. Maximum Pressure Resistance: 10 bar

4. Inlet Connection: Standard G1/2 thread

5. Mounting Hole Diameter: Φ22mm

6. Available Colors: White, Gray
